biomass rotary drum dryer
The Best Choices for Your Project
- Customization Service：The maximum customizable diameter is 3.5 meters
- Solution：Provide solutions for your problems
- Dryer length: 8 meters to 50 meters.

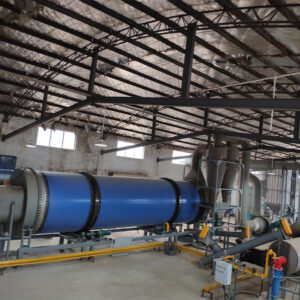

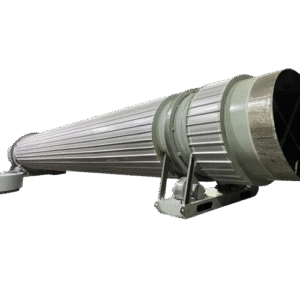

biomass rotary drum dryer
A Biomass Rotary Drum Dryer is an industrial drying system specifically engineered to reduce the moisture content of various biomass materials. It consists of a large, rotating cylindrical drum where wet biomass is fed in and consistently exposed to a hot air stream. This process is vital for preparing biomass for efficient use in biofuel production (like pellets and briquettes), co-firing in power plants, and other energy applications. By removing excess water, the dryer significantly increases the calorific value, improves combustion efficiency, and reduces transportation costs of the biomass.
The operation of a biomass rotary drum dryer is based on direct or indirect heat transfer within a slowly rotating, slightly inclined drum. The process can be broken down into the following stages:
Feeding: Wet, raw biomass is uniformly fed into the upper end of the drum using a conveyor or screw feeder.
Lifting and Showering: As the drum rotates, a series of internal fins (called flights or lifters) pick up the material and shower it down as a continuous curtain across the entire cross-section of the drum.
Heat Transfer and Drying: A stream of hot air, generated by a furnace or burner, flows through the drum. The cascading action of the biomass maximizes its surface area exposure to the hot air, enabling rapid and uniform evaporation of moisture.
Transport and Discharge: The combined effect of gravity (from the drum’s incline) and the air flow gently moves the biomass from the feed end to the discharge end. During this journey, moisture is continuously removed.
Collection: The dried biomass, now with a stable, low moisture content, exits the drum. The exhaust gas, laden with moisture and fine particles, is passed through a dust collection system (e.g., cyclone, bag filter) before being released, ensuring an environmentally friendly operation.
The following table provides an example of our standard model range. Capacities can vary based on the initial/final moisture content and the type of biomass.
| Model | Drum Diameter (m) | Drum Length (m) | Evaporation Capacity (kg H₂O/h)* | Recommended Final Output (TPH)** | Power (kW) |
|---|---|---|---|---|---|
| BRD-1215 | 1.2 | 15 | 1,500 – 2,000 | 1.5 – 2.5 | 30-37 |
| BRD-1520 | 1.5 | 20 | 2,500 – 3,500 | 2.5 – 4.0 | 45-55 |
| BRD-1822 | 1.8 | 22 | 4,000 – 5,500 | 4.0 – 6.5 | 55-75 |
| BRD-2124 | 2.1 | 24 | 6,000 – 7,500 | 6.0 – 8.5 | 75-90 |
| BRD-2426 | 2.4 | 26 | 8,500 – 10,000 | 8.5 – 11.0 | 90-110 |
*Note: *kg H₂O/h = Kilograms of water evaporated per hour. **TPH = Tons per hour of dried product. These are indicative values for a material like sawdust dried from ~50% to ~10% moisture.*
What Biomass Materials Can Be Dried?
Biomass rotary drum dryers are highly versatile and can process a wide range of organic materials, including:
Agricultural Waste: Sawdust, wood chips, wood shavings, bark.
Agricultural Residues: Rice husk, wheat straw, corn stalks, bagasse, coconut shell.
Energy Crops: Miscanthus, switchgrass, willow.
Other Biomass: Sewage sludge, poultry litter, distiller’s grains.
Moisture and Particle Size Requirements
Moisture Requirements:
Initial Moisture: Typically can handle very high initial moisture content, often up to 50-55% (wet basis).
Final Moisture: The dryer can be controlled to achieve a precise final moisture content, usually between 10-15%, which is ideal for most pelletizing and combustion processes.
Particle Size Requirements:
For efficient and uniform drying, biomass particles should be relatively consistent in size. The optimal size is typically less than 30mm in its smallest dimension.
Why it matters: Very large chunks dry slowly on the outside while remaining wet inside. Excessive fines (tiny particles) can be carried away by the air stream, causing loss and potential blockages in the dust collection system.
Pre-processing: Materials like large wood chips or stalks may require chipping or crushing before drying to ensure optimal performance.
Advantages and Key Features of Our Biomass Rotary Drum Dryer
High Efficiency & Large Capacity: The cascading action ensures excellent heat transfer, allowing for high evaporation rates and large-volume processing.
Uniform Drying: The tumbling action prevents clumping and ensures every particle is dried evenly, resulting in a consistent, high-quality product.
Robust and Durable: Built with wear-resistant materials and heavy-duty steel to withstand the abrasive nature of many biomass materials.
Flexible Heat Source: Can be designed to utilize various heat sources, including biomass-fired hot air furnaces (using your own waste material), natural gas, diesel, or steam.
Intelligent Control: Optional PLC-based control systems automatically adjust temperature, feed rate, and rotation speed to optimize drying efficiency and product quality.
Low Maintenance: Simple and robust design with easy access for inspection and maintenance, minimizing downtime.
Customized Biomass Dryer Solutions
We recognize that every biomass project is unique. Therefore, we specialize in designing and manufacturing fully customized Biomass Rotary Drum Dryers to meet your exact operational needs. Our engineering team can tailor the following aspects:
Capacity & Throughput: Designed to match your specific production volume requirements.
Moisture Reduction: Optimized for your material’s unique initial and target final moisture content.
Fuel & Heat Source: Configured to work with your available heat source (biomass, gas, oil, etc.) for maximum cost-efficiency.
Material Handling: Customized feed and discharge systems to integrate seamlessly with your existing equipment.
Space & Layout: Designed to fit within the constraints of your available plant space.
Automation Level: From basic control to fully automated, smart systems for unmanned operation.
Contact us today for a free consultation. Let us provide you with a tailor-made drying solution that enhances your biomass fuel production and boosts your profitability.
