Calcium carbonate dryer
The Best Choices for Your Project
Provide you with calcium aluminate drying solutions
- Production capacity: 1-20T/H.
- Customizable diameter from 80cm to 3600cm.
- Dryer length: 8 meters to 36 meters.
Calcium carbonate dryer

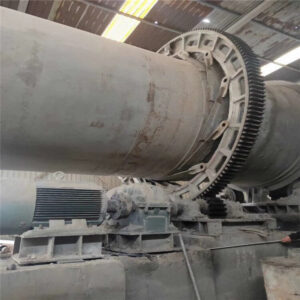

A calcium aluminate dryer is a specialized drying equipment developed for drying calcium aluminate. Calcium aluminate is primarily formed by the sintering of limestone and bauxite at high temperatures, containing a large amount of calcium and moisture. It requires a professional rotary drum dryer for drying. After drying, the calcium aluminate can be further processed and is widely used in industries such as cement, ceramics, glass, and metallurgy.
The drying principle of the calcium aluminate dryer uses thermal energy exchange, enabling quick and stable drying of the moisture in the calcium aluminate, achieving a moisture content of less than 1%.
High Production Efficiency
Our calcium aluminate dryer operates continuously for 24 hours, with a daily processing capacity ranging from dozens to hundreds of tons.
Energy Saving and Cost Reduction
The dryer is designed with sealing, hot air circulation, and insulation, saving 30% more energy than competing dryers, significantly lowering production costs.
Environmental Protection
The dryer is equipped with high-efficiency cyclone dust collectors, bag filters, or water-film dust removal systems, meeting international advanced standards.
High Degree of Automation
From start to finish, the calcium aluminate dryer uses intelligent operation, with a PLC touch-screen control system. Parameters like drying temperature, air speed of the hot air furnace, and drum speed can be centrally controlled, enabling one-touch start and stop. The operation is simple, requiring minimal human intervention.
| Model (mm) | Inclination (%) | Rotating Speed (r/min) | Inlet Temperature (℃) | Power (kW) | Volume (m³) | Capacity (t/h) | Weight (t) |
|---|---|---|---|---|---|---|---|
| Φ600×6000 | 3–5 | 3–8 | ≤700 | 3 | 1.69 | 0.5–1.5 | 2.9 |
| Φ800×8000 | 3–5 | 3–8 | ≤700 | 4 | 4.01 | 0.8–2.0 | 3.5 |
| Φ800×10000 | 3–5 | 3–8 | ≤700 | 4 | 5.02 | 0.8–2.5 | 4.5 |
| Φ1000×10000 | 3–5 | 3–8 | ≤700 | 5.5 | 7.85 | 1.0–3.5 | 5.6 |
| Φ1200×10000 | 3–5 | 3–8 | ≤700 | 7.5 | 11.30 | 1.8–5.0 | 14.5 |
| Φ1200×12000 | 3–5 | 3–8 | ≤700 | 11 | 13.56 | 2.0–6.0 | 14.8 |
| Φ1500×12000 | 3–5 | 2–6 | ≤800 | 15 | 21.19 | 3.5–9.0 | 17.8 |
| Φ1800×12000 | 3–5 | 2–6 | ≤800 | 18 | 30.52 | 5.0–12 | 25 |
| Φ2200×12000 | 3–5 | 1.5–6 | ≤800 | 18.5 | 45.59 | 6.0–15 | 33 |
| Φ2200×18000 | 3–5 | 1.5–6 | ≤800 | 22 | 68.38 | 10–18 | 53.8 |
| Φ2200×20000 | 3–5 | 1.5–6 | ≤800 | 30 | 75.98 | 12–20 | 56 |
| Φ2400×20000 | 3–5 | 1.5–5 | ≤800 | 37 | 90.43 | 18–30 | 60 |
| Φ3000×20000 | 3–5 | 1.5–5 | ≤800 | 55 | 141.3 | 25–35 | 78 |
Calcium carbonate dryer
High Production Efficiency
Our calcium aluminate dryer operates continuously for 24 hours, with a daily processing capacity ranging from dozens to hundreds of tons.
Energy Saving and Cost Reduction
The dryer is designed with sealing, hot air circulation, and insulation, saving 30% more energy than competing dryers, significantly lowering production costs.
Environmental Protection
The dryer is equipped with high-efficiency cyclone dust collectors, bag filters, or water-film dust removal systems, meeting international advanced standards.
High Degree of Automation
From start to finish, the calcium aluminate dryer uses intelligent operation, with a PLC touch-screen control system. Parameters like drying temperature, air speed of the hot air furnace, and drum speed can be centrally controlled, enabling one-touch start and stop. The operation is simple, requiring minimal human intervention.
Features of Our Calcium Aluminate Dryer
Unique Disaggregation Device
Due to the high moisture content of calcium aluminate, our dryer uses a unique disaggregation device and self-cleaning paddles to continuously break up material clumps and effectively prevent sticking on the drum wall, ensuring drying efficiency and continuity.
Multi-Layer Shell Structure
The drum uses a multi-layer shell structure, allowing the material to undergo a longer cycle of drying inside the machine. This design saves space and maximizes thermal efficiency, achieving a heat utilization rate of over 80%.
High-Temperature and Wear-Resistant Materials
The internal lifting plates and key components such as the feed end are made from heat-resistant manganese steel or stainless steel and can be treated for wear resistance. This ensures the equipment is durable, resistant to wear and corrosion, and has a longer service life.
Precise Control of Temperature and Airflow
The hot air temperature can be precisely adjusted according to the process requirements of calcium aluminate (typically controlled within a suitable low-to-medium temperature range to avoid deactivating active substances). Paired with a variable frequency fan to control airflow, it ensures that the drying process curve is executed perfectly.
Multiple Heat Source Configurations
The dryer can accommodate various heat sources, including natural gas (liquefied gas), fuel oil, coal, biomass pellets, steam, or waste heat from boilers.
Why Choose Us as Your Calcium Aluminate Dryer Manufacturer?
Customizable Drying Solutions
We can design a customized calcium aluminate drying plan based on the customer’s initial moisture content, target product moisture, drying capacity, site area, and heat source.
Years of Experience in Chemical Product Drying
With years of experience in drying chemical products, we can share our expertise with clients and have in-depth discussions about their needs.
Installation, Commissioning, and After-Sales Training
We offer full-service support, including dryer installation, equipment debugging, and after-sales training, ensuring that customers can independently operate their calcium aluminate dryer equipment.
