The Best Choices for Your Project
We are a professional manufacturer of coconut shell dryer factory, providing you with coconut shell dryer equipment
- Production capacity: 1-20T/H.
- Various types of coconut shell dryers can be customized
- Dryer length: 8 meters to 36 meters.

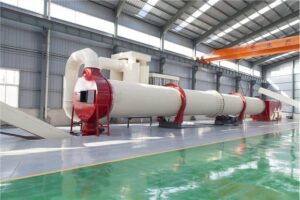

wood chip dryer
A wood chip dryer is a specialized machine designed for drying wet materials such as wood chips, sawdust, wood shavings, and bark. The dryer adopts a rotary drum design, using a furnace to provide heat. Inside the drum, hot air exchanges with the material, evaporating the moisture.
The wood chip dryer is controlled by a PLC operating system. It includes a feeding system, drying system, and discharging system. Auxiliary systems include a dust removal system, heat source system, and more. The dryer can reduce the moisture content of high-moisture wood chips to around 20% or even lower.
Using a professional wood chip dryer makes subsequent processing easier and increases utilization value.
Higher Calorific Value
After drying, wood chips have higher heat value. They can be made into biomass pellets by a pellet machine and used for power generation in power plants or for heating in winter.
Organic Fertilizer Additive
In the production of organic fertilizer, fermentation requires auxiliary materials. Dried wood chips are excellent auxiliary materials for organic fertilizer production.
Easier Storage and Transportation
High-moisture wood chips are prone to fungal growth and mold. After drying, storage life is extended, and dried wood chips are easier to transport.
Applications in Other Industries
Dried wood chips can be used for charcoal production, as well as for manufacturing MDF, particleboard, and other wood-based panels.
| Model | Daily Output (t/d) | Drying Capacity (t/h) | Raw Material Moisture | Dried Material Moisture | Drying Temperature (°C) | Total Power (kw) | Total Weight (kg) | Occupied Area (㎡) |
|---|
| JHD-1210 | 44.0-19.5 | 0.565 | 35-50% | 4-15% | 370±100 | 28 | 13,500 | 5*15 |
| JHD-1409 | 46.5-20.5 | 0.595 | 34% | – | – | 15,500 | 5*15 |
| JHD-1615 | 88.0-39.0 | 1.130 | 45% | – | – | 19,500 | 6*22 |
| JHD-2010 | 144.5-63.5 | 1.850 | 78% | – | – | 25,000 | 8*18 |
| JHD-2210 | 154.0-67.5 | 1.976 | 85% | – | – | 27,000 | 10*18 |
| JHD-2510 | 193.0-83.5 | 2.427 | 110% | – | – | 35,000 | 10*18 |
| JHD-2512 | 227.0-100.0 | 2.912 | 125% | – | – | 38,000 | 10*20 |
| JHD-2912 | 268.0-120 | 3.432 | 135% | – | – | 43,500 | 10*22 |
Working Principle of a Wood Chip Dryer
The wood chip dryer adopts a hot air exchange method for drying. Heat sources can be electricity, biomass pellets, natural gas, or coal.
Size Reduction & Feeding
Wood chips are crushed by a wood crusher to about 3 mm in size, then evenly fed into the dryer through the feeding system.
Drying in the Drum
Inside the drum, driven by a motor, the drum keeps rotating, and the wood chips tumble continuously. Meanwhile, hot air flows through the drum and makes full contact with the wood chips to remove moisture.
Discharging
The dried wood chips are automatically discharged through the discharging system.
During the drying process, customers can control wood chip moisture content, drying temperature, and drum speed via the PLC system.
Temperature control is especially important:
If the temperature is too low, drying will be incomplete.
If the temperature is too high, the wood chips may carbonize.
Our wood chip dryer can set different temperature levels according to different materials.
How Should Customers Choose a Wood Chip Dryer?
Raw Material and Moisture Content
What is the raw material? What is the initial moisture content, and what is the required final moisture content?
Heat Source Selection
Customers can choose the heat source according to their own situation. Options include natural gas, fuel oil, coal, steam, or biomass fuel. We can provide multiple configurations.
Equipment Material & Workmanship
Check the thickness of the steel, welding process, and dust removal system.
Available Site Area
Large sites can use large wood chip dryers, while smaller sites can be equipped with compact models.
Manufacturer’s Service
Consider whether the manufacturer provides site planning, technical design, installation, commissioning, operator training, and comprehensive after-sales service.
Why Choose Us as Your Wood Chip Dryer Manufacturer?
Rich Experience
We have extensive experience in drying wood chips, sawdust, bark, and wood shavings, and can design different drying solutions according to customer needs.
Customized Service
We can provide tailor-made wood chip dryers according to the customer’s raw material, production capacity, site size, and heat source.
Advanced Technology
Our dryers adopt the latest environmentally friendly technology to avoid pollution. The steel material is wear-resistant, and the equipment is manufactured with precision, ensuring a longer service life.
Automation Design
The wood chip dryer can adopt full PLC automation for fully automatic drying, or semi-automatic operation according to customer requirements.
Strong After-Sales Support
Our powerful service team not only provides installation and commissioning, but also operator training and technical guidance, ensuring stable operation of the wood chip dryer.
