biomass waste dryer
The Best Choices for Your Project
- Customization Service：The maximum customizable diameter is 3.5 meters
- Solution：Provide solutions for your problems
- Dryer length: 8 meters to 50 meters.
biomass waste dryer

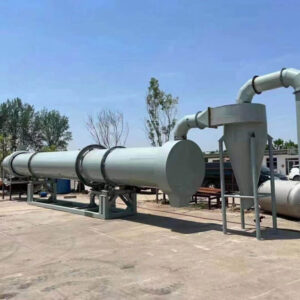

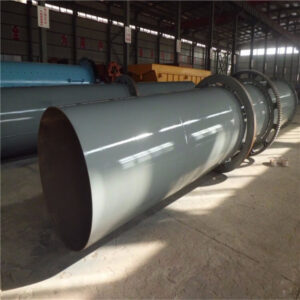

A Biomass Waste Dryer is an industrial drying system designed to efficiently reduce the moisture content of various organic waste materials, transforming them into stable, valuable, and easy-to-handle products. By applying controlled heat and airflow, these dryers remove excess water from wet biomass, such as animal manure, agricultural residues, and organic sludge. This process is a critical step in sustainable waste management and resource recovery, turning potential pollutants into profitable resources like organic fertilizers, soil conditioners, and biomass fuel.
Our advanced Biomass Waste Dryer is highly versatile and can handle a wide range of organic materials, including but not limited to:
Animal Manure: Chicken manure, cow dung, pig manure, horse manure.
Agricultural Waste: Straw, rice husks, sawdust, bagasse, corn stalks.
Organic Sludge: Municipal sludge, food processing sludge, distillery sludge.
Green Waste: Lawn clippings, leaves, garden waste.
Food Waste: Fruit and vegetable peels, coffee grounds.
Aquatic Plants: Algae, water hyacinth.
We offer a range of standard models to suit different production scales. The table below outlines some of our popular models. All specifications can be customized according to your specific requirements.
| Model | Evaporation Capacity (kg H₂O/h) | Initial Moisture | Final Moisture | Drying Temperature | Main Motor Power (kW) | Floor Area (m²) |
|---|---|---|---|---|---|---|
| BWD-500 | 500 | ≤70% | ≤13% | 80-300°C | 7.5 | 4m x 10m |
| BWD-1000 | 1000 | ≤70% | ≤13% | 80-300°C | 11 | 5m x 15m |
| BWD-2000 | 2000 | ≤75% | ≤13% | 80-300°C | 18.5 | 6m x 20m |
| BWD-3000 | 3000 | ≤75% | ≤13% | 80-300°C | 22 | 7m x 25m |
| BWD-5000 | 5000 | ≤80% | ≤13% | 80-300°C | 30 | 8m x 30m |
| BWD-10000 | 10000 | ≤80% | ≤13% | 80-300°C | 55 | 10m x 40m |
Key Benefits of Drying Biomass Fertilizer
Investing in a Biomass Waste Dryer offers numerous economic and environmental advantages:
Volume & Weight Reduction: Drying significantly reduces the volume and weight of waste, slashing transportation and storage costs by up to 50-70%.
Odor Elimination: The high-temperature drying process kills pathogens and eliminates foul odors, making the final product more environmentally friendly and easier to handle.
Enhanced Fertilizer Quality: Produces a stable, dry, and nutrient-rich organic fertilizer that is easy to pelletize, bag, and sell, improving soil structure and fertility.
Waste-to-Energy Potential: Dried biomass with high calorific value can be used as a renewable fuel for boilers, contributing to a circular economy.
Pollution Prevention: By properly treating and recycling waste, you prevent water and soil contamination from leachate and methane emissions.
Features and Advantages of Our Biomass Waste Dryer
Our dryers are engineered for maximum efficiency, durability, and user-friendliness.
High Thermal Efficiency: Utilizes advanced heat exchange technology for low energy consumption per ton of water evaporated.
Anti-Caking Design: Features a unique breaking-up device that prevents materials from agglomerating, ensuring uniform and continuous drying.
Intelligent Control System: An automated PLC allows for precise control over temperature, moisture, and drying time, ensuring consistent product quality.
Robust Construction: Built with high-quality, wear-resistant materials (e.g., stainless steel inner lining) for a long service life in corrosive environments.
Flexible Heat Source: Can be configured to use various heat sources, including natural gas, biomass fuel, steam, or even waste heat from other processes, reducing operational costs.
Environmentally Friendly: Equipped with a dedicated dust collection and deodorization system to meet strict environmental emission standards.
We Can Customize the Biomass Waste Dryer for You!
We understand that every client’s raw material and production goals are unique. Therefore, we specialize in providing fully customized biomass waste dryer solutions. Our engineering team will work closely with you to design a system that perfectly matches your needs. Customization options include:
Capacity and Size: Tailored to your specific daily/hourly processing requirements.
Heat Source: Designed to integrate with your available energy source (gas, oil, coal, biomass, steam, waste heat).
Material Handling: Customized feeding and discharging systems to fit your existing production line.
Automation Level: From basic manual control to fully automated, cloud-monitored systems.
Special Materials: Designs optimized for particularly sticky, abrasive, or high-moisture materials.
Contact us today for a free consultation and quotation. Let us help you turn your biomass waste into a valuable asset!
