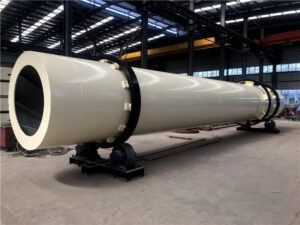

The Application of Rotary Dryer Drums in the Mining and Metallurgy Industry
The Best Choices for Your Project
- Customization Service：The maximum customizable diameter is 3.5 meters
- Solution：Provide solutions for your problems
- Dryer length: 8 meters to 50 meters.
Table of Contents
Why the Mining and Metallurgy Industry Needs Rotary Dryer Drums
The mining and metallurgy industries frequently handle materials with high moisture content. This moisture presents significant challenges:
Processing Efficiency: Wet materials are prone to clogging crushers, screens, and ball mills, reducing throughput and causing operational downtime.
Transportation and Handling: Moist, sticky materials are difficult to convey, leading to buildup on conveyor belts and in hoppers.
Subsequent Processing: In metallurgy, moisture in concentrates or ores can lead to unsafe conditions in smelters (e.g., steam explosions) and increase the energy required for roasting or smelting.
Quality and Value: For sale and transport, reducing moisture content increases the effective weight and value of the product, lowering shipping costs.
A rotary dryer drum directly addresses these issues by efficiently reducing the moisture content of bulk materials, making them free-flowing, easier to handle, and ready for the next stage of processing.
2. Global Adoption and Key Sectors
Rotary dryers have become a standard piece of equipment in mining and metallurgical operations worldwide. Their adoption has increased due to the global push for higher efficiency, lower operating costs, and stricter environmental regulations. They are especially critical in the following sectors:
Iron Ore Processing: Drying iron ore concentrates and tailings.
Copper, Zinc, and Lead Smelting: Drying metal concentrates before feeding into flash smelters or roasters.
Bauxite and Alumina Production: Drying bauxite ore and hydrate alumina.
Coal Mining and Preparation: Drying clean coal and coal slurries to improve calorific value and reduce transport costs.
Mineral Sands: Drying ilmenite, zircon, and rutile.
Gold Processing: Drying ore and concentrate, and drying cyanide tailings for dry-stack disposal.
3. Application Scenarios
In a typical mining application, wet material (e.g., concentrate from a filter press with 8-15% moisture) is fed into the elevated end of the rotating drum. As the drum rotates, internal flights (lifters) pick up the material and shower it through a stream of hot gas. This hot gas can be generated by a direct-fired burner (using natural gas, diesel, or coal) or indirectly heated. The material moves co-currently or counter-currently to the gas flow, losing moisture through intense heat transfer and evaporation. The dried, granular product is discharged at the lower end, ready for stockpiling, transport, or feeding into a smelting furnace.
Advantages in the Mining and Metallurgy Industry
High Capacity and Robustness: Built to handle large, continuous tonnages of abrasive and heavy materials.
Excellent Thermal Efficiency: The tumbling action and internal flights create a large surface area for heat exchange, ensuring efficient drying.
Handling Flexibility: Can process a wide range of materials, from fine powders to coarse granules, and handle variations in feed moisture.
Durability and Low Maintenance: Constructed with wear-resistant liners and simple, robust mechanics, leading to long service life and minimal downtime.
Simplicity of Operation: The operating principle is straightforward, making it easy to control and automate.
Environmental Systems
Modern rotary dryers in these industries are equipped with sophisticated environmental control systems to minimize dust emissions and capture pollutants.
Dust Collection: High-efficiency baghouses (fabric filters) or cyclone separators are used to capture fine particulate matter from the dryer exhaust.
Scrubbing Systems: For metallurgical operations where the material may release volatile compounds or sulfur dioxide, wet scrubbers are employed to neutralize and clean the exhaust gases.
Closed-Loop Systems: In some cases, indirect dryers are used where the material does not contact the combustion gases, preventing the release of any emissions from the product itself.
Site Requirements
Substantial Space: Requires a significant footprint for the dryer itself, the combustion system (burner), feed and discharge systems, and the dust collection unit.
Strong Foundation: The heavy, rotating equipment generates dynamic loads, necessitating a strong, vibration-dampening concrete foundation.
Utility Access: Requires access to a reliable and substantial source of fuel (gas, oil), electrical power for the drive motor and fans, and potentially water for scrubbers.
Ventilation: The area must be well-ventilated to dissipate incidental heat.
7. Selection and Operation Guide
Selection Guide:
Material Characteristics: Analyze moisture content (initial and final), particle size, abrasiveness, and thermal sensitivity.
Capacity: Determine the required throughput (tons per hour).
Heat Source: Choose between direct (higher efficiency, product contacts gases) or indirect (for sensitive or polluting materials) heating.
Airflow Configuration: Select co-current flow for heat-sensitive materials or counter-current for maximum thermal efficiency and lower final moisture.
Construction Materials: Specify wear-resistant steels and appropriate refractory linings based on material abrasiveness and temperature.
Operation Guide:
Start-up Sequence: Initiate the drum rotation, followed by the burner at a low temperature, then gradually introduce the feed material.
Monitoring: Continuously monitor discharge moisture, inlet/outlet gas temperatures, and drum rotation speed.
Optimization: Adjust burner temperature, feed rate, and drum speed to achieve the desired product moisture without overheating.
Shutdown Sequence: Stop the feed, allow the dryer to run to empty, then shut down the burner and continue rotating the drum until it cools to prevent thermal stress and warping.
Maintenance: Perform regular inspections of flights, liners, gear drives, and seals. Lubricate bearings as per schedule.
