brewers spent grain dryer
The Best Choices for Your Project
- Customization Service：The maximum customizable diameter is 3.5 meters
- Solution：Provide solutions for your problems
- Dryer length: 8 meters to 50 meters.
brewers spent grain dryer

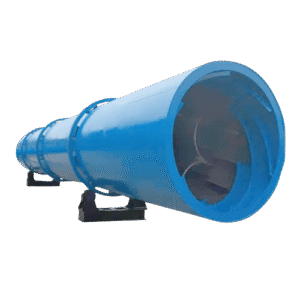

A Brewers Spent Grain (BSG) dryer is specialized industrial equipment designed to efficiently remove moisture from brewer’s spent grain – the main by-product of the beer brewing process. Using advanced rotary drum drying technology, our BSG dryers quickly reduce the moisture content from typically 70-80% down to 10-12%, transforming wet, perishable spent grain into stable, valuable animal feed or other bio-products.
High-Efficiency Rotary Drum Design: Uniform drying with optimal heat transfer
Multi-Fuel Heating System: Compatible with coal, electricity, natural gas, or biomass pellets
Intelligent Temperature Control: Precisely maintains optimal drying temperatures
Anti-adhesion Design: Special internal structure prevents material sticking
Energy Recovery System: Recirculates heat to reduce energy consumption
Dust Control System: Comprehensive environmental protection
Automated Operation: PLC control with touchscreen interface
Standard Brewers Spent Grain Dryer Models
| Model | Capacity (kg/h) | Initial Moisture | Final Moisture | Power (kW) | Floor Area (m²) |
|---|---|---|---|---|---|
| BSG-500 | 500-600 | 75-80% | 10-12% | 45-55 | 4×15 |
| BSG-1000 | 900-1100 | 75-80% | 10-12% | 75-90 | 5×18 |
| BSG-2000 | 1800-2200 | 75-80% | 10-12% | 110-132 | 6×20 |
Large Capacity Industrial Models
| Model | Capacity (kg/h) | Initial Moisture | Final Moisture | Power (kW) | Floor Area (m²) |
|---|---|---|---|---|---|
| BSG-3000 | 2800-3200 | 75-80% | 10-12% | 132-160 | 7×25 |
| BSG-5000 | 4800-5200 | 75-80% | 10-12% | 200-250 | 8×30 |
| BSG-8000 | 7500-8500 | 75-80% | 10-12% | 315-355 | 10×35 |
Advantages of Our BSG Drying Technology
Extended Shelf Life: Prevents spoilage and mold formation
Volume Reduction: Decreases weight and volume for easier storage and transport
Value Addition: Converts waste into nutritious animal feed ingredients
Odor Control: Eliminates unpleasant odors associated with wet spent grain
Versatile Application: Suitable for various brewery sizes and production capacities
Cost Effective: Reduces disposal costs and creates additional revenue streams
Important Considerations for Brewers Spent Grain Drying
Moisture Content Management: Initial moisture typically 70-80%, target 10-12%
Temperature Control: Optimal range 150-300°C to preserve nutritional value
Drying Uniformity: Ensure consistent moisture reduction throughout the batch
Nutritional Preservation: Avoid overheating that degrades protein content
Hygiene Standards: Maintain food-grade processing conditions
Energy Efficiency: Balance drying speed with fuel consumption
Versatility of Our Dryers
While ideal for BSG, our dryers can handle a wide range of materials, including:
Agricultural by-products (e.g., distillers’ grains, fruit pomace)
Biomass materials (e.g., wood chips, sawdust)
Sludge and industrial wastes
Food processing residues
Customized Design for Brewers Spent Grain
We analyze your BSG’s specific characteristics—such as initial moisture, particle size, and end-use—to design a dryer that maximizes efficiency and output quality. Our solutions include:
Tailored drying cycles to protect nutrient integrity.
Flexible heat source integration (coal, electricity, natural gas, or biomass pellets).
Scalable systems for small craft breweries to large industrial facilities.
