industrial sludge dryer
The Best Choices for Your Project
- Customization Service：The maximum customizable diameter is 3.5 meters
- Solution：Provide solutions for your problems
- Dryer length: 8 meters to 50 meters.

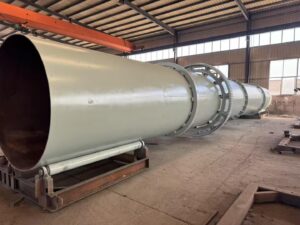

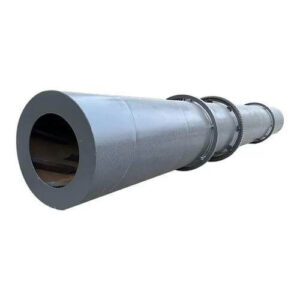

industrial sludge dryer
An industrial sludge dryer is a thermal processing system designed to reduce the moisture content of sludge generated from various industrial processes. Sludge, a semi-solid byproduct from wastewater treatment, is often challenging and costly to dispose of due to its high volume and weight, primarily caused by water. An industrial sludge dryer efficiently evaporates this water, transforming bulky, wet sludge into a dry, stable, and reduced-volume material. This process is crucial for cost-effective disposal, resource recovery, and environmental compliance.
Key Features of Our Industrial Sludge Dryers
Our industrial sludge dryers are engineered for maximum efficiency, durability, and ease of use. Key features include:
High Thermal Efficiency: Advanced heat exchange systems ensure minimal energy consumption.
Automated Control System: A user-friendly PLC interface allows for precise control over temperature, drying time, and moisture level.
Robust Construction: Built with high-quality, corrosion-resistant materials to withstand harsh industrial environments.
Versatile Drying: Capable of handling a wide range of sludge types from different industries.
Safety Systems: Integrated safety features including explosion-proof vents, temperature alarms, and emergency stop functions.
Compact Design: Optimized footprint to save valuable factory space.
The working principle of an industrial sludge dryer involves the application of heat to evaporate water. Here’s a simplified breakdown of the process:
Feeding: Wet sludge is fed into the dryer via a conveyor or pump system.
Drying: Inside the dryer, the sludge is exposed to a controlled heat source. The most common method is indirect heat transfer, where the sludge is heated by contact with hot surfaces (like hollow discs or a jacketed trough), preventing direct contact with flue gases and minimizing emissions.
Mixing & Agitation: An internal stirring mechanism (e.g., rotating shafts with paddles) continuously mixes the sludge. This ensures uniform heat distribution, prevents clumping, and enhances drying efficiency.
Vapor Evaporation & Removal: The heat causes the water within the sludge to evaporate. The resulting water vapor is extracted and treated through an exhaust gas treatment system (like a condenser or scrubber) to meet environmental standards.
Discharge: The final dried sludge product, now with significantly reduced moisture and volume, is discharged from the other end of the dryer for further processing or disposal.
| Model | Drum Diameter (m) | Drum Length (m) | Rotation Speed (rpm) | Heating Source Options | Evaporation Capacity (kg H₂O/h) | Power Consumption (kW) | Footprint (approx. L x W x H m) |
|---|---|---|---|---|---|---|---|
| RSD-1012 | 1.0 | 12 | 1 – 5 | Natural Gas, Diesel | 200 – 400 | 15 – 25 | 14 x 4 x 5 |
| RSD-1214 | 1.2 | 14 | 1 – 5 | Natural Gas, Biogas, Steam | 400 – 700 | 25 – 40 | 16 x 4.5 x 5.5 |
| RSD-1518 | 1.5 | 18 | 0.5 – 4 | Natural Gas, Fuel Oil, Hot Air | 700 – 1,200 | 40 – 65 | 20 x 5.5 x 6 |
| RSD-1822 | 1.8 | 22 | 0.5 – 4 | Natural Gas, Biomass, Thermal Oil | 1,200 – 2,000 | 65 – 90 | 25 x 6 x 7 |
| RSD-2226 | 2.2 | 26 | 0.3 – 3 | Natural Gas, Coal, Waste Heat | 2,000 – 3,500 | 90 – 132 | 30 x 7 x 8 |
| RSD-2430 | 2.4 | 30 | 0.3 – 3 | All of the above + Electric Heater | 3,500 – 5,000 | 132 – 200 | 33 x 8 x 9 |
Advantages of Using an Industrial Sludge Dryer
Investing in a sludge dryer offers numerous economic and environmental benefits:
Volume & Weight Reduction: Reduces sludge volume by up to 75%, drastically cutting transportation and disposal costs.
Waste-to-Resource: Dried sludge can be used as a biomass fuel, fertilizer additive, or construction material, creating potential revenue streams.
Pathogen Elimination: The high-temperature process effectively sterilizes the sludge, eliminating harmful pathogens and odors.
Improved Disposal Compliance: Meets the strict requirements for landfill disposal by reducing leachate potential.
Environmentally Friendly: Minimizes the carbon footprint associated with sludge transportation and landfilling.
What Can Dried Sludge Be Used For?
After passing through an industrial sludge dryer, the resulting biosolid has various valuable applications:
Alternative Fuel: Used in cement kilns or power plants as a source of renewable energy.
Agricultural Use: As a soil conditioner or fertilizer (subject to quality and regulatory approval).
Brick Manufacturing: Incorporated into clay for brick production.
Landfill Cover Material: Used as a daily cover at landfills.
Important Considerations for Sludge Drying
To ensure optimal performance and safety, several factors must be considered:
Sludge Characteristics: The composition, viscosity, and initial moisture content affect dryer selection and settings.
Final Moisture Target: The desired end moisture level dictates the required drying time and energy input.
Emissions Control: Proper treatment of evaporated vapors and exhaust gases is essential for environmental compliance.
Explosion Risk Management: Certain dry, dusty sludge can be combustible; proper system design and safety protocols are mandatory.
Maintenance: Regular cleaning and maintenance of the dryer and its components are crucial for long-term reliability.
Customized Drying Solutions for Your Needs
We can process sludge with an initial moisture content of up to 80-85% and dry it down to a level that meets your specific requirements, typically as low as 10-30%.
Understanding that every industrial facility has unique challenges, we specialize in custom-building industrial sludge dryers. Whether you need a specific capacity, a particular final moisture content, or a system that fits a constrained space, our engineering team can design and manufacture a dryer tailored precisely to your operational needs and budget.
Contact us today for a free consultation and let us provide you with a custom sludge drying solution!
