manure drying system
The Best Choices for Your Project
- Customization Service：The maximum customizable diameter is 3.5 meters
- Solution：Provide solutions for your problems
- Dryer length: 8 meters to 50 meters.
manure drying system
A Manure Drying System is an industrial-scale setup designed to rapidly reduce the moisture content in various types of animal manure (e.g., chicken manure, cow dung, pig manure). By applying heat and mechanical agitation, it transforms wet, raw manure into a stable, dry, granular, or powdery product. This process significantly reduces volume and weight, eliminates pathogens and weed seeds, and creates a high-value, organic fertilizer that is easy to store, transport, and apply.
A system centered around a Rotary Dryer (also called a Drum Dryer) is one of the most efficient and common setups. It includes:
Feeding System: A conveyor (screw or belt) that uniformly and continuously feeds wet manure into the rotary drum.

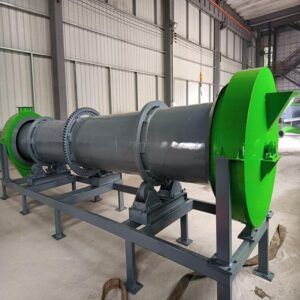

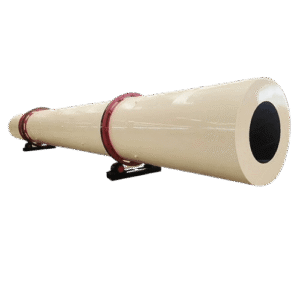

Rotary Drum Dryer: The core component. It’s a large, slightly inclined rotating cylinder. As the manure tumbles inside the drum, it comes into contact with hot air.
Heat Source & Furnace: Generates the hot air required for drying. Common sources include biomass burners, gas/oil burners, or steam heat exchangers.
Air Flow System: A high-pressure fan draws hot air through the drum, and an induced draft fan removes the moist exhaust gas.
Discharge System: Collects the dried manure from the dryer’s outlet and transfers it for cooling or packaging.

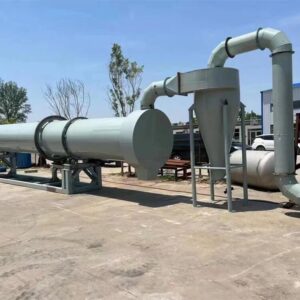

Dust Collection & Deodorization System: Crucial for environmental protection. This typically includes a cyclone separator and a baghouse dust collector to remove particulate matter, and sometimes a wet scrubber or biofilter to neutralize odors.
Control Cabinet: An automated control system to monitor and regulate temperature, speed, and feed rate for optimal performance.
Below is a sample table of our standard rotary dryer models.
| Model | Drum Size | Capacity | Fuel Consumption | Power |
|---|---|---|---|---|
| MD-1210 | Φ1.2m x 10m | 1-1.5 T/H | 70-90 kg/hr (Biomass) | 18.5 kW |
| MD-1512 | Φ1.5m x 12m | 2-3 T/H | 110-140 kg/hr (Biomass) | 22 kW |
| MD-1814 | Φ1.8m x 14m | 4-5 T/H | 180-220 kg/hr (Biomass) | 30 kW |
| MD-2216 | Φ2.2m x 16m | 6-8 T/H | 250-320 kg/hr (Biomass) | 45 kW |
| MD-2418 | Φ2.4m x 18m | 9-12 T/H | 350-450 kg/hr (Biomass) | 55 kW |
**Capacity is based on reducing moisture from ~80% to ~13%. Actual output may vary.
**Fuel consumption varies based on moisture content and fuel type
Moisture Reduction: What Levels Can Be Achieved?
A rotary manure drying system is highly effective. It can typically reduce moisture content from:
Initial Moisture: 65% – 85% (depending on manure type and pre-treatment)
Final Moisture: Below 15%, often as low as 10-13%.
This creates a crumbly, soil-like material that is ideal for fertilizer
What Types of Manure Can Be Dried?
The system is versatile and can handle manure from most livestock:
Chicken Manure
Cow Dung / Cattle Manure
Pig Manure
Horse Manure
Sheep/Goat Manure
Duck Manure
It can also process manure mixed with bedding materials like sawdust or straw
How to Choose the Heat Source?
| Heat Source | Advantages | Disadvantages |
|---|---|---|
| Biomass Burner | Low fuel cost, uses wood chips, rice husk, etc. | Requires a stable supply of biomass, produces more ash. |
| Natural Gas / LPG Burner | Clean, efficient, easy to control. | Higher fuel cost, requires gas pipeline or storage. |
| Oil Burner (Heavy Oil, Diesel) | High thermal efficiency, readily available. | High operational cost, produces emissions. |
| Steam Heater | Indirect heating, no contamination of manure. | Requires a steam boiler, lower thermal efficiency. |
| Biogas Burner | Very eco-friendly, uses biogas from digesters. | Requires a functioning biogas plant. |
Environmental Protection Solutions
e integrate comprehensive environmental controls:
Dust Control : A multi-stage system with a Cyclone Separator (removes larger particles) and a Baghouse Dust Collector (filters over 99% of fine dust) is standard.
Odor Control : The high-temperature drying process itself kills odor-causing bacteria. For residual odors, we offer Wet Scrubbers (using chemical agents to absorb odors) or Biofilters (using microorganisms to decompose odorous gases).
Emission Monitoring : Systems can be designed with ports for emission monitoring to ensure compliance with local regulations.
Environmental Protection Solutions
e integrate comprehensive environmental controls:
Dust Control : A multi-stage system with a Cyclone Separator (removes larger particles) and a Baghouse Dust Collector (filters over 99% of fine dust) is standard.
Odor Control : The high-temperature drying process itself kills odor-causing bacteria. For residual odors, we offer Wet Scrubbers (using chemical agents to absorb odors) or Biofilters (using microorganisms to decompose odorous gases).
Emission Monitoring : Systems can be designed with ports for emission monitoring to ensure compliance with local regulations.
We Offer Custom-Manufactured Manure Drying Systems
Your operation is unique, and your drying system should be too. We specialize in engineering fully customized manure drying solutions tailored to your specific needs and site conditions.
Our Customization Process Includes:
In-Depth Needs Analysis: We discuss your raw manure type, initial moisture, daily/hourly processing capacity, desired final moisture, available space, and preferred heat source.
Feasibility & Design: Our engineers perform calculations and create a preliminary design and flow diagram for your review.
Component Specification: We select the appropriate rotary drum size, fan power, burner type, dust collector model, and conveyor systems to match your project perfectly.
Special Feature Integration: We can integrate features like:
Pre-dewatering: Adding a screw press to remove excess water first, drastically reducing drying energy costs.
Cooling System: Adding a cooler after the dryer to allow immediate bagging of the finished product.
Automated Control: Advanced PLC systems for one-touch operation and remote monitoring.
Corrosion-Resistant Materials: Using stainless steel for critical parts if manure has high salinity or acidity.
Manufacturing, Installation & Support: We manufacture, test, provide installation guidance, and offer comprehensive after-sales service and spare parts.
Contact us today for a free consultation and quotation. Let us build the ideal manure drying system to boost your profitability and sustainability.
