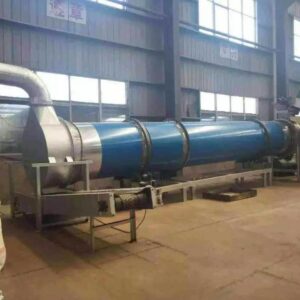

poultry manure dryer
A Poultry Manure Dryer is an industrial drying system designed to efficiently reduce the moisture content of wet poultry litter and manure. By applying heat and mechanical agitation, it transforms raw, high-moisture manure into a stable, dry, granular, or powdery product. This process is crucial for modern large-scale poultry farms as it addresses critical issues like waste management, environmental pollution, and odor control. The resulting dry manure becomes a valuable organic fertilizer or a component in animal feed, creating an additional revenue stream for farmers.
The working principle of a poultry manure dryer revolves around the direct or indirect heat transfer and mechanical movement of the material inside a rotating drum.
Feeding: The wet poultry manure is uniformly fed into the rotating drum of the dryer by a conveyor system.
Drying Drum: Inside the long, slightly inclined drum, a series of internal fins lift and shower the manure through a stream of hot air.
Heat Transfer: A hot air furnace generates high-temperature air, which flows through the drum. As the manure particles are showered, they come into direct contact with the hot air, causing rapid evaporation of moisture.
Material Movement: The rotation of the drum and its internal structure ensure that the manure moves from the feed end to the discharge end, undergoing continuous drying throughout its journey.
Discharge & Dust Collection: The dried manure is discharged from the other end. Any fine particles carried by the exhaust air are captured by a cyclone separator or a baghouse dust collector, ensuring clean emissions.
We offer a range of models to suit different farm sizes and production needs. Standard specifications vary, but common parameters include:
| Model | Drum Diameter (m) | Drum Length (m) | Capacity (TPD*) | Power (kW) | Initial Moisture | Final Moisture |
|---|---|---|---|---|---|---|
| PMD-1208 | 1.2 | 8 | 2-3 | 15 | ≤80% | ≤13% |
| PMD-1510 | 1.5 | 10 | 4-6 | 22 | ≤80% | ≤13% |
| PMD-1812 | 1.8 | 12 | 8-10 | 30 | ≤80% | ≤13% |
| PMD-2214 | 2.2 | 14 | 12-15 | 45 | ≤80% | ≤13% |
| PMD-2516 | 2.5 | 16 | 18-22 | 55 | ≤80% | ≤13% |
*TPD: Tonnes Per Day. Note: These are sample parameters. Actual capacity depends on moisture content and heat source.
Poultry Manure Dryer Heat Source Options
The dryer is highly flexible in its heat source, allowing you to choose the most economical and available option:
Natural Gas / Propane: Clean and easy to control.
Diesel / Heavy Oil: High calorific value, suitable for areas without gas supply.
Biomass Burner: Uses biomass like wood chips, rice husk, or sawdust, making it a very cost-effective and sustainable choice.
Coal: A traditional and low-cost option, though less environmentally friendly.
Steam: Utilizes steam from a boiler for indirect heating.
Electric Heater: Suitable for small-scale operations where other fuels are not feasible.
What Materials Can a Poultry Manure Dryer Dry?
While primarily designed for poultry waste, this versatile dryer can effectively handle a variety of high-moisture organic materials:
Poultry Manure: Chicken manure, duck manure, turkey manure, etc.
Other Animal Manure: Cow dung, pig manure, horse manure.
Agricultural Waste: Sawdust, straw, bagasse.
Organic Sludge: Municipal sludge, distillery sludge.
Other Biomass: Brewers’ grains, vinasse.
Poultry Manure Dryer Workflow
The complete drying process is systematic and efficient:
Wet Manure → Conveying → Feeding → Drying (Hot Air + Drum Rotation) → Discharge → Cooling → Packing/Silo Storage
Collection: Raw manure is collected from poultry houses.
Dehydration (Optional): For very high moisture content, a solid-liquid separator may be used first.
Feeding: A feeder ensures a consistent and uniform supply to the dryer.
Drying: The core process where moisture is removed in the rotary drum.
Dust Collection: Fine particles are recovered from the exhaust.
Cooling: The hot, dried product is cooled for safe storage and packaging.
Packaging: The final product is bagged or stored in bulk.
Performance and Features of Poultry Manure Dryer
High Drying Efficiency: Advanced heat exchange design ensures rapid and uniform drying.
Energy Saving: Utilizes efficient heat sources and features excellent thermal insulation to minimize fuel consumption.
Strong Durability: Made from high-quality, wear-resistant materials to withstand the corrosive nature of manure, ensuring a long service life.
Environmentally Friendly: Equipped with dust collection systems to prevent air pollution. The drying process also eliminates pathogens and weed seeds.
Safe Operation: The system includes safety devices like temperature controls and pressure relief valves.
Automation: Can be equipped with PLC control systems for easy operation and consistent product quality.
Odor Reduction: The high-temperature process significantly reduces unpleasant odors.
